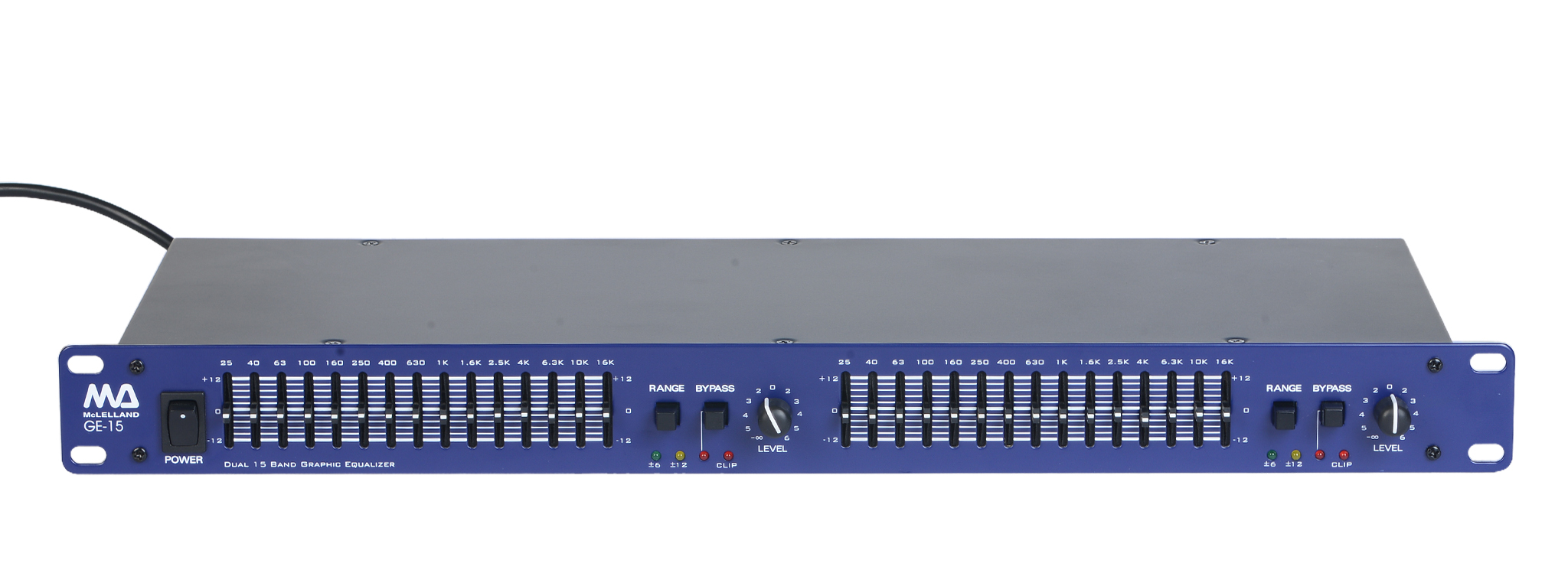

GE-15


Graphic Equalizers



GE-15

Graphic Equalizers

XLR-60RCA-606.3
The GE - series graphic equalizers are integrates perfectly into any proaudio & live system, with road-ready construction and great sound quality which is perfect choice for live sound , instrument racks, DJ, enhancing an installed system and fixed equipment installations.

Features

•Simple, Straight-for-forward and State-of-the-Art
•Constant-Q Filtering
•Balanced XLR, Active Balanced 1/4", and Unbalanced RCA Input and Output Connectors
•20mm /45mm Center-Detented frequency band sliders
•Variable High-Pass and Low-Pass Filters
•+/- 6dB or +/-12dB Level Adjustments
•Independent Level and Bypass Controls



Specifications

•Bands:2*15,2/3 Octave
•Input Impedance: 10kΩ (Bal), 15kΩ (Unbalance)
•Maximum Input Leve: +22dBm
•Output Impedance: <150Ω
•Maximum Output Level: +18dBm(Bal), +22dBm(Unbalance)
•Signal/Noise Ratio: 94dB
•THD: <0.01%
•Frequency Response: 20~20KHz. ±0.5dB
•Power Requirement: 120VAC, 50/60Hz(230VAC available)
•Dimensions: 4.45 x 48.3x 21.6cm
•Weight:2.5Kgs

Documents

GE Series User - Manual - McLELLAND.pdf
