DIC4422A

Bluetooth & Line I/O Dante Interface Wall Plate

DIC4422A

Bluetooth & Line I/O Dante Interface Wall Plate

Bluetooth-60Dante-603.5 JACK-60RCA-60

The DIC4422A is Bluetooth audio receiving panel, with two RCA Line level inputs and a 3.5mm TRS Line level input. A 3.5mm TRS Line level output on the front panel.  When paired with a compatible Bluetooth enabled device, the panel receives stereo audio from the Bluetooth source, and converse to the two Dante audio channels via standard CATx cable with RJ-45 connector. Line level audio inputs and outputs using  other two Dante audio channels.

DIC4422A powered by PoE and features high-quality circuits to provide studio grade of performance without worrying about ground loops or other common audio problems. High performance, simplicity of operation and efficiency of installation make DIC4422A the best to use for installed sound system, teleconferencing, etc.



Features

* Dante Interface 4 input and 2 output channels.

* Easy Bluetooth connection by a single button.

* Status LEDs indication on the front panel.

* Good compatibility with most smartphones, tablets or other Bluetooth devices.

* Two RCA and one 3.5mm TRS Line level inputs.

* One 3.5mm TRS Line level output.

* Input level adjustment.

* Power supply and audio transmission via PoE network switch.

* Customize Bluetooth name and PIN code via UART port.

* Simply audio configuration and routing by using Dante Controller.

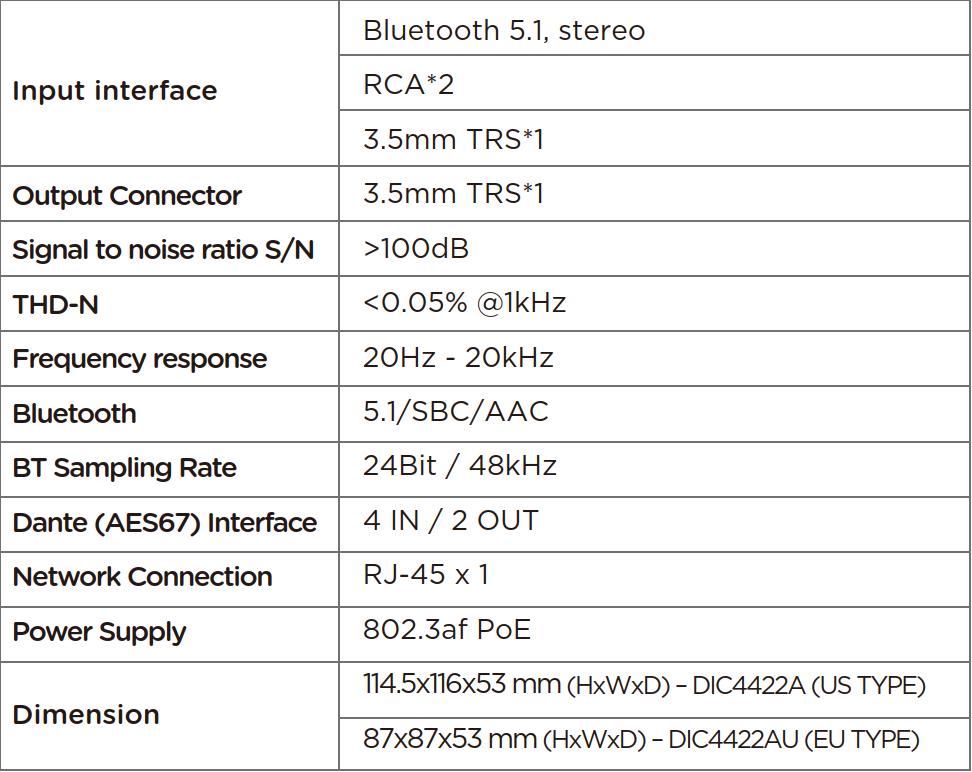

Specifications

屏幕截图 2024-12-02 152644.png

Documents

DIC4422A DM.pdf
