The PD-2 14-socket power conditioner features high-power sockets and a delay function to protect your speakers and power amplifiers from the impact of unexpected bursts of sound when you turn on and off your equipment.
12-Channel | Power Conditioner & Sequencer
12-Channel | Power Conditioner & Sequencer
The PD-2 14-socket power conditioner features high-power sockets and a delay function to protect your speakers and power amplifiers from the impact of unexpected bursts of sound when you turn on and off your equipment.
Power-up in 3 delayed outlet groups: Analog, Digital, and High Current.
The Analog outlet turns on last after a 3-second delay, and the High Current outlet turns on last after a 6-second delay to prevent loudspeaker impacts. The power-off sequence is reversed to protect your devices.

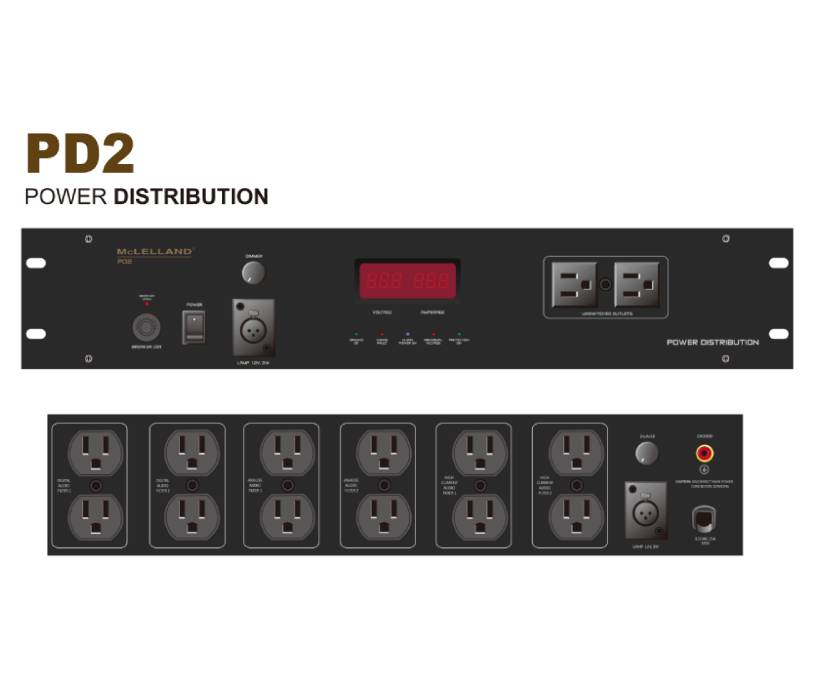

12 rear panel outlets with switches and 2 front panel convenience outlets unswitched.
High-quality RFI filtering with multi-stage PL filters.
Automatic disconnect/reconnect protection circuit.
Dual protection provides audio and visual alarms for strict protection.
3-pin XLR lamp connectors (front and rear) for illuminating the rack.
Heavy-duty cables for excellent power transmission.
Can connect multiple devices to handle higher currents.
Sequential AC power on/off stages for protection and overload prevention.
Type: Rack-mounted
Number of outlets: 2 x front, 12 x rear
Output current: 15A
Display: LED voltage meter, current meter, status indicator light
Lights: 2 x XLR connectors
Features: noise filtering technology
Rack size: 2U
Power source: Fixed AC cable
Operating voltage: AC 90V - 140V
Maximum power: 1800 watts
Voltage meter accuracy: ±2V
Protection cutoff: less than 80V and greater than 132V
Protection modes: line-neutral, line-ground, neutral-ground
Dimensions: 482.6 mm x 88.9 mm x 416.6 mm (width x height x depth)
Net weight: 9KG
