Features

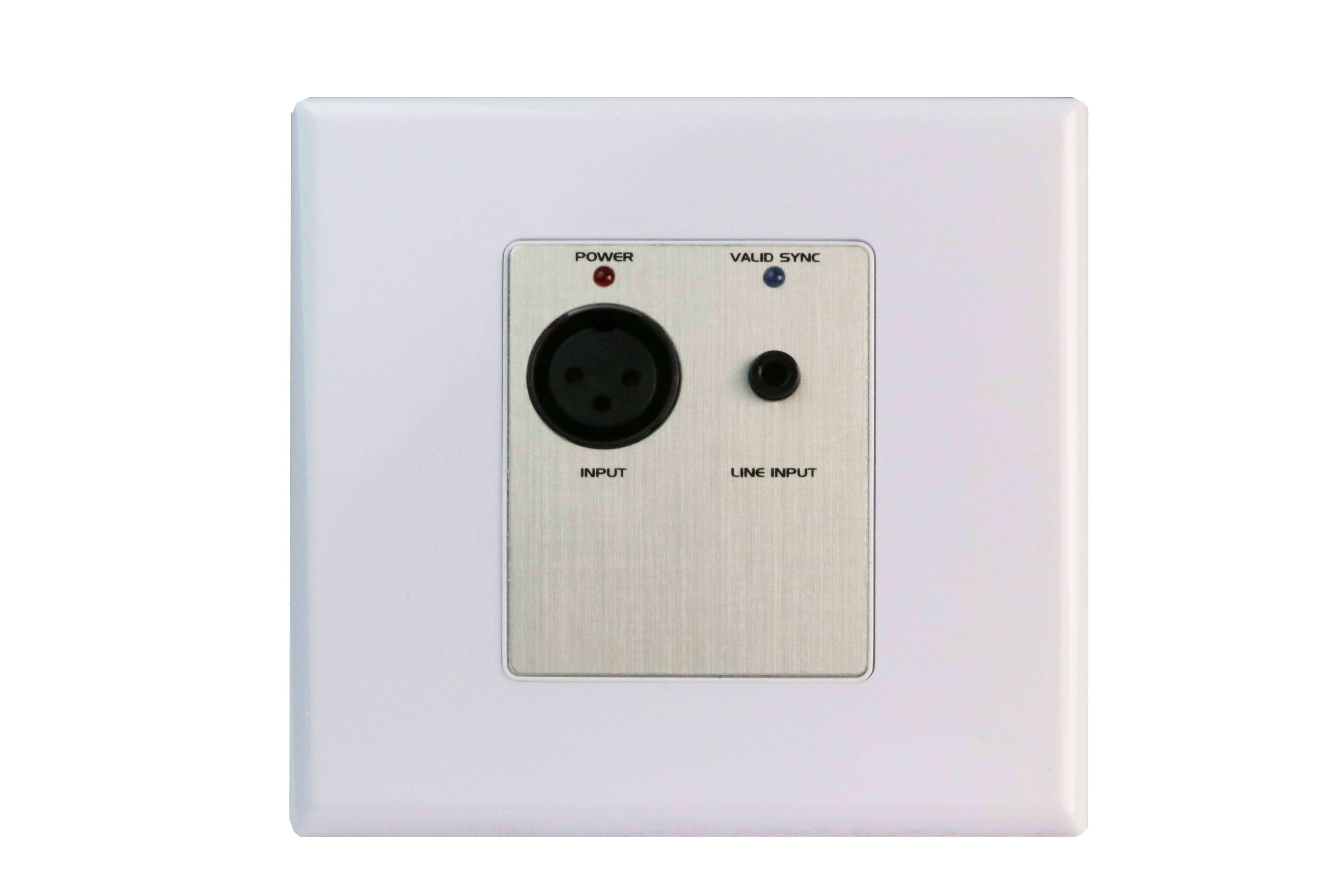

• One Mic/Line XLR Input and One Mini-jack Input on Front Panel
• Terminal Block for Two Audio Outputs on Rear Panel
• Mini-jack Input is set to Mono signal
• Converts Mic or Line Audio Signals to Dante Network
• Mic or Line is Selectable for XLR Input
• Switchable 48V Phantom Power for Mic XLR Input
• Adjustable Mic/LIne Gain from -20 dB to +20dB for Each Input Channel
• Two Audio Signal Outputs from Dante Network
• Balanced or Unbalanced Signal Outputs
• High Resolution 24 Bit for DAC and ADC
• Power over Ethernet (PoE) or 24VDC power supply
• Provides High Quality of Preamplifier for Microphones
• Dimension: 116mm x 114.5mm x 53.1mm (WHD)

Specifications

    Mic/Line Inputs to Dante Network

* Input: XLR (female), Stereo Mini-jack (L, R)

* Gain Range: -20 ~ +20

* Input Impedance: >2.5kΩ (XLR MIC), >5kΩ (XLR LINE ), >50kΩ (Mini-jack)

* Phantom Power: 48 V Switchable

* Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)

* THD+N: < 0>

* Noise below +4 dBu: < -70 dB

* CMRR: > 65 dB (50 Hz to 120 Hz)

    Dante Network to Line Outputs

* Outputs : 5P, Balanced/Unbalanced, detachable terminal block (Output 1/2)

* Output Level: -10 dBu nominal (Line)

* Output Level: +10 dBu Maximum

* Output Voltage: +20dBu (@ 0dB output gain)

* Output Impedance: 150 Ω balanced; 75 Ω unbalanced

* Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)

* THD+N: < 0>

* Noise: <-80dB

* Crosstalk: < 85>

Documents

DIC2523A DIC2523AU Manual.pdf
