Features

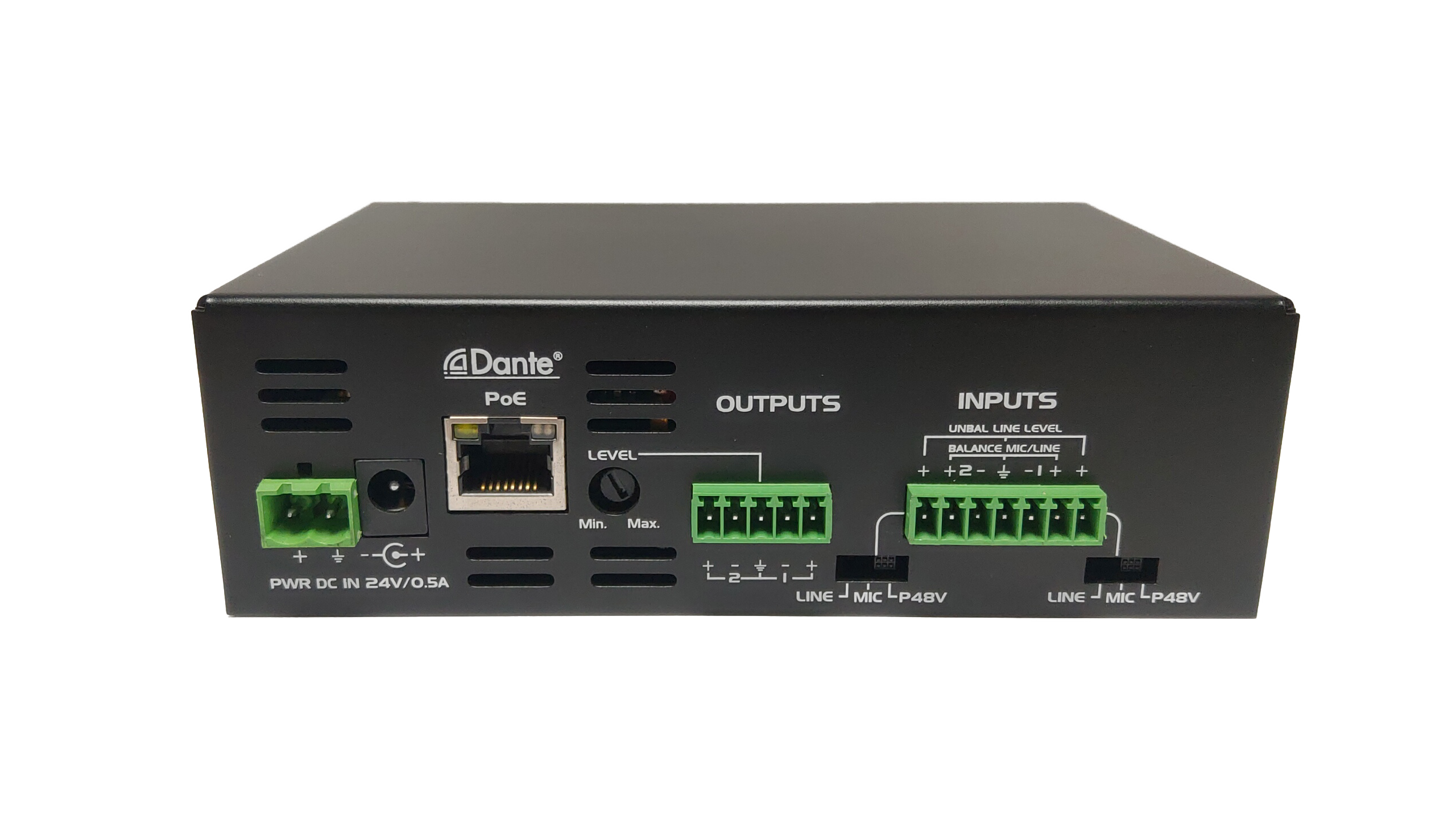

• Two Mic/Line Terminal Block Inputs on Rear Panel.
• Converts Mic or Line Audio Signals to 2 Channels Dante Network.
• Switchable Mic/Line/48V Phantom Power for Each Input.
• Terminal Block for Two Audio Outputs on Rear Panel
• Two Audio Signal Outputs from Dante Network.
• Converts 2 Channels Dante Signals to Two Line Terminal Block Outputs.
• Balanced or Unbalanced Signals for Inputs and Outputs.
• Adjustable Gain Control for Output Level on Rear Panel.
• LED indicators for Signal Level and Clip of Each Input Channel on Front Panel.
• Adjustable Gain from -20 dB to +20dB for Each Input Channel on Front Panel.
• LED indicators for Signal Level of Each Output Channel on Front Panel.
• Power over Ethernet (PoE) or 24VDC power supply
• LED Indicators Show the Status of Power and Network.
• High Resolution 24 Bit for DAC and ADC
• Provides High Quality of Preamplifier for Microphones.
• Dimension: 143mm x 45mm x 93mm (WHD)

Specifications

    Dante Network to Line Level Outputs

* Outputs : 5P Detachable Terminal block, Balanced/Unbalanced

* Output Level:   -10 dBu nominal

* Output Level:   +10 dBu Maximum

* Output Voltage:  +20dBu (@ 0dB output gain)

* Output Impedance: 150 Ω balanced; 75 Ω unbalanced

* Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)

* THD+N: < 0>

* Noise: <-75dB

* Crosstalk: < 85>

    Mic/Line Inputs to Dante Network

Mic Inputs

* Inputs :7 Pin Euro Terminal, Balanced

* Gain:  Condenser microphone :40 dB

* Dynamic microphone : 60 dB

* Input Level for +4 dBu: -36 dBu (Condenser)

                                        -56 dBu (Dynamic)

                                        -36 dBu(Maximum)

* Input Impedance: 40 Ω

* Phantom Power: 48 V

* Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)

* THD+N: < 0>

* Noise below +4 dBu: < -70 dB

* CMRR: > 70 dB (50 Hz to 120 Hz)

* Crosstalk: < 70>

Line Inputs

* Inputs : 7 Pin Euro Terminal, Balanced

* Input Level for +4 dBu: +4 dBu (balanced); -10 dBV (unbalanced)

* Input Impedance: >40 Ω

* Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)

* THD+N: < 0>

* Noise below +4 dBu: < -75 dB

* CMRR: > 60 dB (50 Hz to 120 Hz)

* Crosstalk: < 75>

                    < 70>

* Headroom above +4 dBu: > 18 dB

    Dante channel

* Transmitters/Receivers: 4/4

* Transmission rate: 100 Mbps

* Resolution:  16/24/32 Bit

* Sampling rate: 44.1 kHz, 48 kHz.

* Dante interface: RJ45 jack

* Power Connections :2 Pin Euro Terminal, Power Jack

* Power Requirement: 24 Vdc @ 180 mA plus connected phantom loads, or PoE

* Dimensions: 143mm(W) × 45mm(H) × 93mm(D)

* Weight: 0.7Kgs

Documents

DIC2E23A User Manual.pdf
