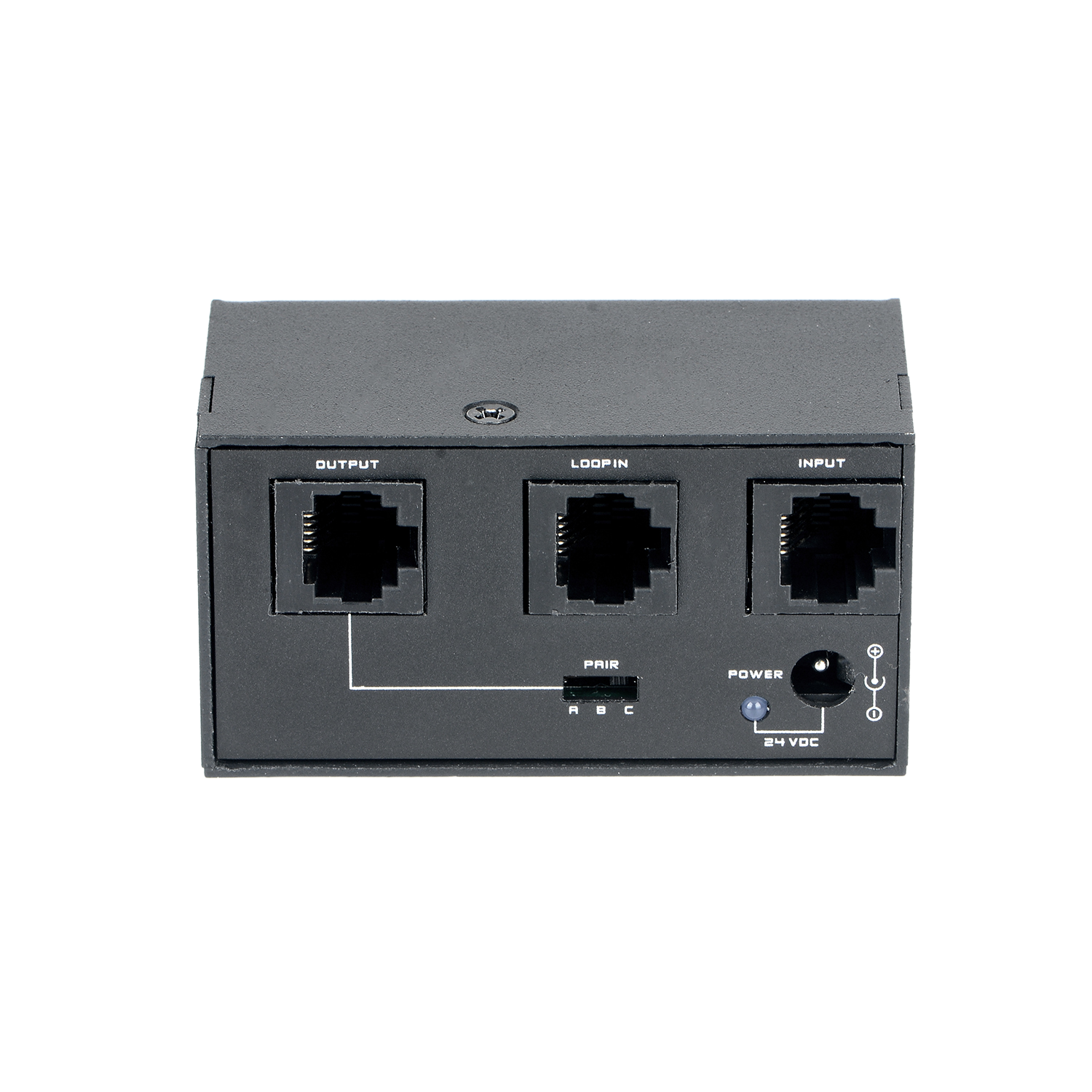

Features

• Accepts Three-Pair of Signals from CSP Transceivers
• Mixing function for the Audio Sources on CSP Pairs A, B and C (Isolated)
• The Mixed Output sends One Pair of the Cable Connected to the UTP RJ45 OUTPUT
• Switch Selects the UTP RJ45 Output Pair A, B or C to send the signal
• Two Pairs of Audio Signal and the Power Pair Pass Through to OUTPUT from LOOP IN Jack
• Provides the power to all Modules Connected to RJ45 Jacks
• Daisy chain topology
• AFC Design  (AFC: Auto Feedback Gain Circuitry)

Specifications

* Input Connector: RJ-45 INPUT/LOOP INTwisted Pair Used: A, B, C pairs

* Output Connector: RJ-45

* THD+N: < 0>

* Frequency Response: 20 Hz ~ 20 kHz

* Power Requirement: 24 VDC @ 35 mA; 155 mA (Max.)

* DC Power Connectors: DC Jack, RJ45

* Dimensions: 76.2mm x 40.6mm x 38.1mm (WxHxD)

Documents

UBM-1012A User Manual.pdf
