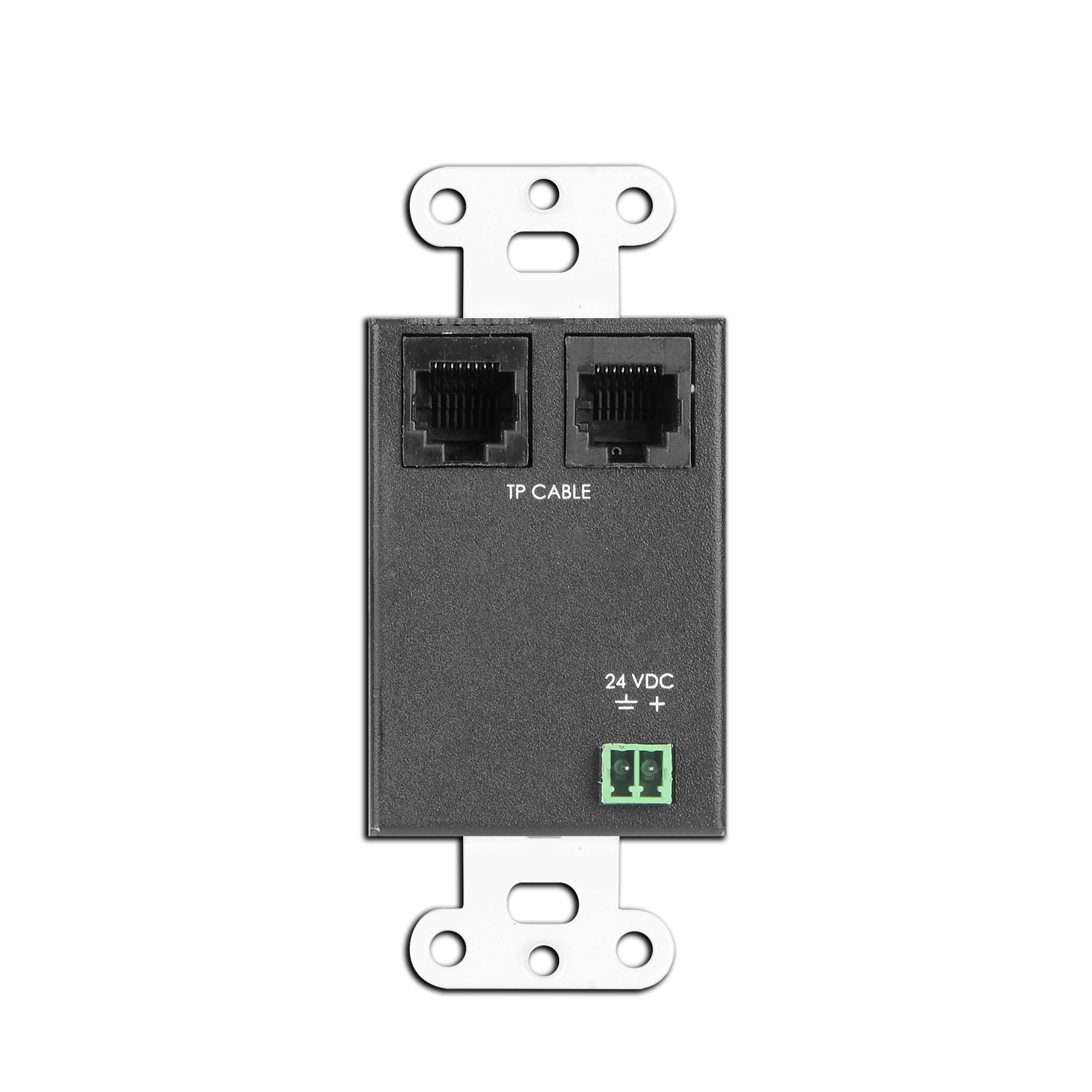

The CSP SERIES-UT2212A modules are two-pair audio sending modules compatible with CSP UN-SHIELD TWISTED PAIR TRANSCEIVER. These modules are designed to be mounted in wall boxes, cabinets or other enclosures that allow users to connect audio sources. The-UT2212A models mount in wall boxes, or in standard U.S. electrical boxes.
Inputs (2): Input Connection: Input Level: CSPSignal Pairs Used (2): Gain: Input: Output: Output Connection: Frequency Response: THD+N: Noise below +4 dBu: Crosstalk: Headroom above +4 dBu: Indicator: Power Connections (2): Power Requirement: Maximum Load Current: Dimensions: Mounting Box Minimum Depth: | 10 kΩ Unbalanced RCA Phono +10 dBV Maximum B (Left); C (Right) 12 dB CSP UTP RJ45 UTP Receiver (RJ45) RJ45 20 Hz to 50 kHz (+/- 0.5 dB) < 0> < -95 dB < 90> > 18 dB Power In Detachable Terminal Block; RJ45 24 Vdc @ 65 mA plus connected loads 135 mA 1.6" (4.06 cm) W; 4.11" (10.45 cm) H; 1.89" (4.8 cm) D 2.4" |
