60WX2 CLASS-D Amplifer
60WX2 CLASS-D Amplifer

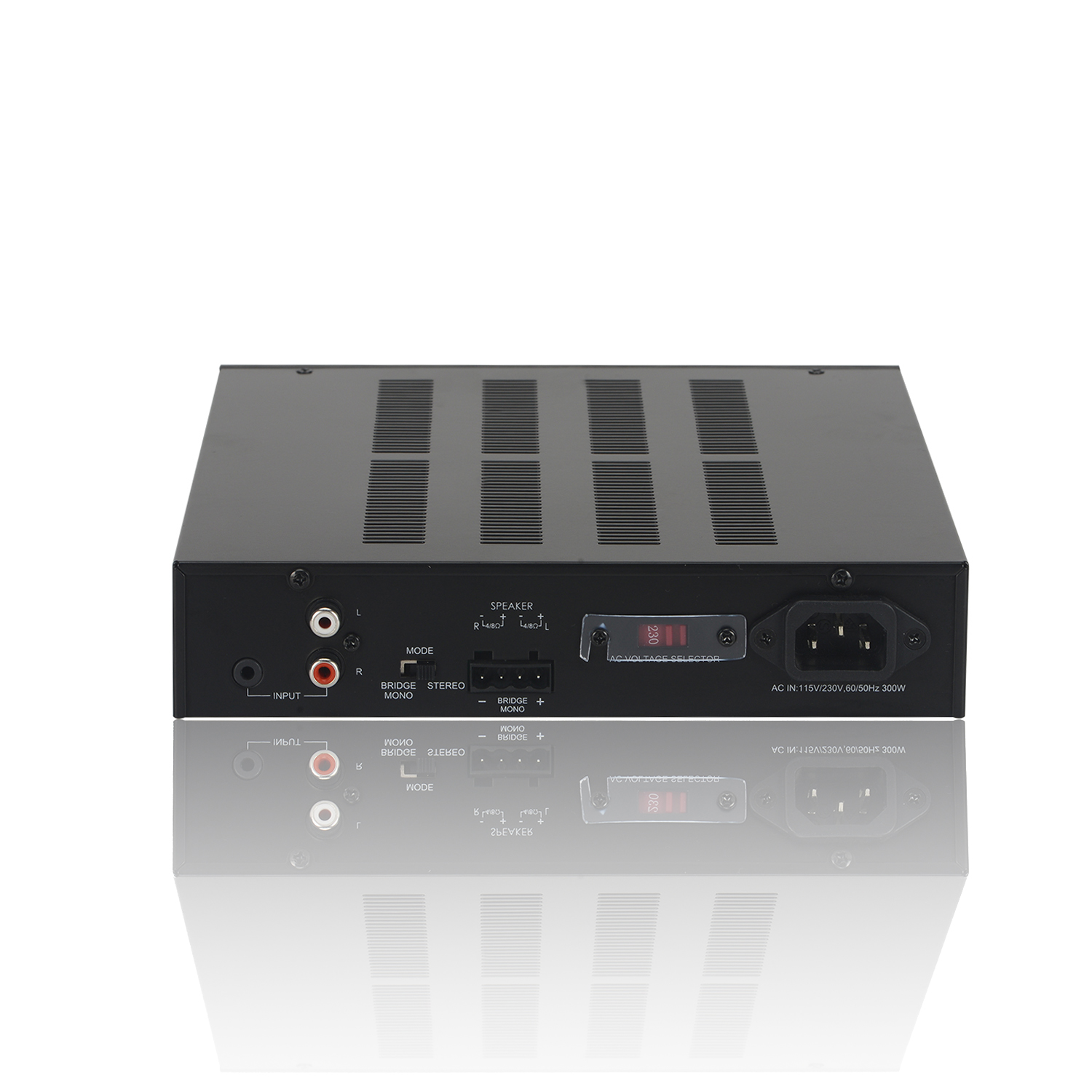

McLELLAND class D mini type Amplifier series were represented the perfessional switch power function’s quality performance for commercial audio installations such as classrooms or offices, where a small, low wattage power amp is required. This palm-sized Class D amplifier sits inconspicuously on a desktop, and can also be installed on walls or under cabinets by using the included brackets.
Provides 180W Watts Output Power (RMS @ 8 Ω, Bridge).
Class D circuit designed.
Switching Power Supply
RCA/3.5mm Jack Line IN.
Stereo/Bridge Mode Selection
Selectable Voltage.
AC 115/230V IN
Power Output: 60WX2 (RMS @ 8Ω)
Power Output: 90WX2 (RMS @ 4Ω)
Bridge Output: 180W(RMS @ 8Ω)
Total Harmonic Distortion (THD): <1>
Signal to Noise: >90 dB A WTD
Frequency Response:20Hz~20KHz +0/-2dB@ 8Ω
Line Level Input Sensitivity: 700mV
Thermal Protection: Yes
Short Protection: Yes
Dimension: 214mm x 250mm x 44mm (WxDxH)
Weight: 1.32Kgs
